| Line continues to produce chips Incalfer |
|

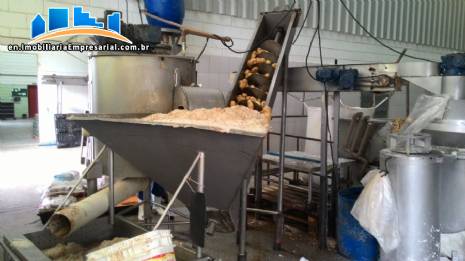

Line continues to produce chips Incalfer.
Capacity: 300 Kg/h (finished product).
Composed by:
-primary screw-Feeder Used reviewed.
Receiving silo potatoes totally built in stainless steel 304.
Screw conveyor (helical) built in stainless steel material.
Gearmotor driven with power of 1/2 HP.
support Structure totally built in stainless steel 304 square pipes.
-Pelador (peeler) centrpifugo potatoes-Used revised.
Access and support structure with gutter potato power totally built in stainless steel square pipes.
Drum coated in abrasive material, with central axle fixed speed gearmotor driven, power 1/2 HP.
spout with hatch to the potato release, built in stainless material.
-continuous slices Washer-Used revised.
Washer tank totally built in stainless material, complete with drains and discharge valves and cleaning.
Drip mat washed potatoes balanced type, complete with brackets, gears and shafts made entirely in stainless material.
Drive: bike fixed speed reducer with .5 power HP.
-deep Fryer for sliced potatoes-Used revised.
Frying pan totally built in stainless steel plates supported by square tubing structure.
Containment system of the slices of potatoes formed by: single and double reverse blades, mat, totally built in stainless steel.
Drive: inverter variable speed reducer, electronic power 3/4 HP.
Hood for vapour withdrawal of frying, totally built in stainless material, with manual override for withdrawal, engaged the fireplace also in stainless steel.
Mat for continuous withdrawal of French fries, balanced type with traction chains coupled to the side, driven by mechanical back geared motor with variable speed by frequency, power electronic inverter .75 HP.
Disperser for flow Equalization of fat built in plates of stainless material.
Manual regulator valve grease flow coupled directly to the entrance of the deep Fryer pot.
-fat Recirculation pump-Used revised.
Recirculating pump centrifugal type high flow fat, fully built in cast iron, shaft seal by using graphited gasket, engine driven power 30 HP.
-continuous gas heat exchanger, 1.000.000 KCAL-near Mint.
Combustion chamber structure, fully built in square tubes and SAE 1020 carbon steel plates and 1045, isolated and externally coated in aluminum.
Internal recirculation and heating pipes, totally built in stainless steel special heat resistant according to DIN 2448.
Monoblock type burners, with total power of 1.000.000 kcal/h, adjusted and calibrated to work with LPG gas.
Combustion system with diameter 1/2 01:02 class 2 solenoid valves, solenoid valve and pilot 01 01 air filter
drive system with pilot and automatic ignition transformer, pressure switch to minimum pressure of air and gas.
-fat-Storage Tank again.
Built in stainless material, complete with electrical resistance for heating the stored fat. Interconnection between pipe and tank deep Fryer in stainless material.
-drying Mat-New.
Support structure built in folded stainless steel plates.
Hinged treadmill built in stainless material, powered by synchronized gear built in stainless material, and fixed speed gearmotor with .5 power HP.
2 centrifugal fans with powers of 3 and 5 HP coupled to distributors built in stainless material.
Lower suction mat system composed of nylon and collector Cyclone separator in stainless material.
-Aromatizer/feeder-New.
Collector funnel, support structure and transmission box made of stainless material, with electromechanical vibrator with power 1/12 HP.
slotted Cylinder feeder and feeder built in stainless material.
.5 HP power speed reducer with speed variation by electronic frequency inverter.
-vibratory Gutter for separation of fat-Used revised.
Splitter trough built in stainless material, complete with removable strainer for separation of excess fat.
Drive set formed by engine power 01 cv and eccentric double transmitter.
Vibratory system composed of springs of rubber and steel structure, Swiss technology.
Support structure built in square tubes of stainless material.
-cylinder aromatizer-Used revised.
Cylinder Diameter 750 mm x 1,600 aromatizer mm in length built in stainless material, complete with fins and helicoids for homogenization of the product.
Support structure built in square tubes of stainless material, complete with casters for moving the equipment.
Drive: speed power Gearmotor .5 HP.
|
Brand:
Incalfer
|
|
|
Main applications:
Food industry
|
|
Main suggestions:
|
|
 |
Brand: Aucouturier, Haas
Wafer fabrication line.
Located in Tunis, Tunisia.
Descriptions of equipment.
-Thermoformadora
waffer of brand: Haas.
model: Swakt 64.
year: 1994.
dimensions: 290 mm x 500 mm.
voltage: 3 x 220 V, 50 HZ, N/.
-
cooling ARC brand:... |
|
|
 |
Brand: ARV, Bosch, Fabrima, Moinhos Tigre, Semco, TekPack, Tigre
Components: Coel, Dakol, Danfoss, Festo, Fotek, GWA, JHM, Parker, Siemens, Switron, Unitronics, WEG
Complete line for the manufacture of chocolate powder and other blenders.
With high automation and space optimization, compact machines with structures for verticalization (platforms, mezzanine, elevator, connections, conveyor threads, dimensioned... |
|
|
 |
Brand: Rotia
Line for the manufacture of cereal bars brand new semi Rotia with approximately 15 m in length.
consisting of the following equipment:
-
-Laminator cutter.
-
cooling tunnel-Cozinhadores
-Buller.
-k12k * filling * system-water heating syst... |
|
|
 |
Brand: Pavan Group
Pavan lamination set.
It produces' pastelzinho '' 'nacho' and 'doritos' snacks.
- 1 meter wide.
- Composed of a fully automated dough preparation system.
- Two blanket preparation laminators.
- A press with 4 molding cylinders (pastelz... |
|
|
 |
Ice cream industry with a capacity of 12,000 l composed of:
- Heating tubs
- Heat exchangers
- Homogenizing pumps
- Pumps for sanitary transfer
... |
|
|
 |
Cutting line for sweets and cereal bars.
Composed of:
Cylinders
Automatic cutter.
Extruder / laminator.
Horizontal rotary knives.
Transverse rotary knives.... |
|
|
 |
Brand: Braslaer, Incalfer, NKS, Tedesco
Line for the production of sweets such as quindim, queijada, brigadeiro among others.
Composed of the following equipment:
Cooker for sweets.
Brand: Braslaer.
Batcher for brigadeiro and sweets in general.
Brand: Incalfer.
Drip dispe... |
|
|
 |
Licensing: Disney
ABRINQ: recognized by abrinq-child friendly company
products:
) Boxes coated internally and externally, including the background in the same role (70 to 110 grams); manufactured in 80 cardboard with exclusive prints (created a... |
|
|
 |
Complete industry for manufacture of thermoplastic polymers, resulting in acrylic beads made by injection moulding/extrusion.
The industry has excellent automated production line, allowing it to be produced 400 tons per month of granular acrylic,... |
|
|
 |
Traditional company in the food area established in the State of São Paulo, currently producing roasted peanuts, peanut candy, wafer type, with great penetration in the domestic market.
we have fiscal dossier, structural, logistical and marketing i... |
|
|
 |
Brand: Euromax, GRC, SCM, Weldotron
Line stainless steel olives filling.
Composed by:
- Olive bottling plant.
- Accumulator Table bottles.
- Olive reception with stainless steel mat.
- Shipping company.
- Shrinking tunnel.
- Multi head to 10 heads.
Brand: SCM.
With... |
|
|
 |
Brand: Haas
Industrial line for manufacturing continues to cells/wafer rolls for ice cream and candy.
Maximum: 30 Kg per hour.
Cells without stuffing.
Rolls length-maximum = 230 mm
-minimum = 30 mm
Rolls diameter-Maximum outside diameter 24... |
|
|
 |
Brand: Ata, Braibanti, Pavan Group
Line composed by:
trademark boiler Ata, with production of 650 kg/h steam with heating surface to 20 m ³, 120 psig working pressure, test pressure 240 psig. GMP equipment fuel with electric control board.
Pneumatic flour with a capacity of 20... |
|
|
 |
Brand: Gotesp, Macforno, Siam Util
Automated industrial line for food products based on wheat flour: popular Biscuits of various formulations and conformations. Cookies Cream Cracker type grouped and Maria. Butter cookies: coconut Doughnut types, cookies, etc.
AUTOMATED INDUSTR... |
|
|
 |
Complete line for the production of brake linings for heavy and mid-line vehicles.
It has several equipment, among them:
Two hydraulic presses for 500 tonsalas.
Two hydraulic presses for pre-molding.
Broken jet of shot E 100.
Blade mix... |
|
|
 |
Brand: Braibanti
Complete line for the production of short pasta.
Model: Telles.
Brand: Braibanti.
Capacity: 1,200 kg/h
year: 1991.
Short pasta line composition:
-electric Panel.
-press.
-09 storage Silos.
-Lifts.
-transporters.
Note... |
|
|
 |
Complete line for the production of soap powder and bar.
consisting of:
2-large Pots and complete to hit SOAP.
300-shapes for shapes the bars of SOAP.
1-Beneficiadeira.
leafcutter SOAP 1.
1-SOAP extruder.
1-SOAP powder grinder.
1-gr... |
|
|
 |
Brand: G.Mazzoni, Mazzoni, Mazzoni LB
Line for the production of SOAP for approximately 1000 kg hour.
Mark g. Mazzoni.
Reactor Crutch to 3500 kg.
1500 kg lung.
heat exchanger.
2 (two) cyclones (vacuum).
Extruder with three stages, one thread for each stage.
vacuum pump Syst... |
|
|
 |
Brand: Gmg, Novel Tech, Rotopel
Components: Allen-Bradley, Automotion, Hitech, Siemens, Steck, Toshiba, WEG
Machines for the manufacture dampened wipe.
Production: Packages with 50 and 100 (20x15cm).
With automatic label applicator opens and closes.
Composed by:
Automatic flow-pack wrapping machine.
Brand: GMG.
With 5 m length by 1,5 m wi... |
|
|
 |
Brand: G.Mazzoni, Jones, KHS, Mazzoni, Mazzoni LB
Sigma mixer, calender, extrusion and soap press.
Estimated production capacity: between 900 kg / h * up to 1,000 kg / h **.
Machines for the manufacture of soap composed of:
Sigma mixer for soaps.
Brand: G.Mazzoni.
Yield: 175 kg of bas... |
|
|
 |
Brand: Brasholanda, IMSB, Zegla
Complete line for production, pasteurization and packaging of juices, soft drinks, nectar and mixtures.
Average line capacity in the current layout: 3,000 L / H.
Line consisting of:
Tank for concentrated juice syrup, syrup.
- Stainless ... |
|
|
 |
Brand: Brasforno, Cozil, Haas, Icaterm, Klainox, Tecnomecal
Components: Bitzer, Brahma, Danfoss, Dungs, Hofomat, Siemens
Line for making empanadas.
Brand Name: Tecnomecal.
Composed by:
Forming of empanadas.
Brand Name: Tecnomecal.
Model: ML-300.
Lamination of two seasons.
Brand Name: Tecnomecal.
Model: 600.
Two cylinders of imported mass Argenti... |
|
|
 |
Set for production of ginger mints.
Capacity: 50 kg per hour.
Made up of cute bat, trafila, estampadeira and cooling mat.... |
|
|
 |
Complete line of spaghetti consisting of:
-extruder.
-automatic Dryer with complete rods.
-mixers.
-Mill to grind the leftover spaghetti to return.
-2 automatic packaging machines 500 g and 200 g
-Baler.
-boiler.
Production capacity... |
|
|
 |
Brand: Hansel Processing, Otto Haensel
Components: WEG
Spider wire input wire with 800 kg.
With pneumatic position change with automatic control of machine stop in case of wire breakage.
One side profiling machines with steel wire gauges.
With 3.30 m to 3.10 mm with 4 work tables.
28 m in lengt... |
