Buy Line for making empanadas

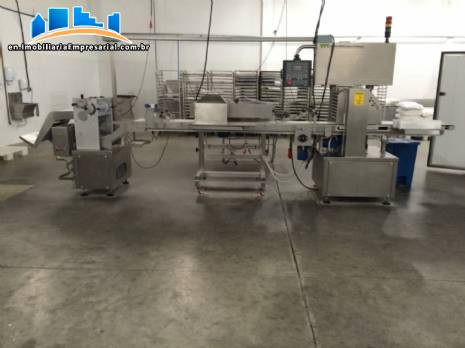

Line for making empanadas.
Brand Name: Tecnomecal.
Composed by:

Forming of empanadas.
Brand Name: Tecnomecal.
Model: ML-300.

Lamination of two seasons.
Brand Name: Tecnomecal.
Model: 600.

Two cylinders of imported mass Argentina.
O.N.V. metalurgica mark Vazquez S.A.
model: 600.
Measurement of machine:
width: 1.26 m
height: 1.90 m.
length: 0.70 m.
With mechanics and complete.
www.monv.com.ar

Envasadora Alfa-300.
Brand Name: Tecnomecal.

Intermittent feed Builder with the following characteristics:
capacity: 4800 pieces/hour (two ways).
working width: 3000 mm (maximum width of 320).
width of conveyer belt: 340 mm.
the process work: 2 (CPN-wide mass 300 mm).
The point guard has the following elements:

-mass refining Module consisting of:
-input table to receive the rods in coils of stainless steel.
-320 mm width, laminator Ø 120 mm hard chrome coated rolls.
-adjustable Thickness from 0 to 3 mm.
-adjustable speed AC Drive.
-an integral stainless steel covers.
-safety devices.
-Table to include armada:
-stainless steel bezel width of 360 mm with the initial rupture less flour.
-Legs, 2 belt woven with polyurethane covering health FDA, with longitudinal guides below.
-command through large diameter drum band sticker acting as carry over effects.
-quick cleaning.
-950 mm Height by approximately 50 mm.

for Flouring.
For working width of 300 mm, completely in stainless steel AISI 304.
Adjustable flow output through inverter that controls the speed of the output roller.
Pot record.

Humidifier mass dosing device by combining water and compressed air, water tank and execution Chamber conlínea solenoid.

Longitudinal cutter mass device.
Three stainless cutting wheels, adjustable independently for ripping.

Distributor of filling by piston pumping.
Module completely built in stainless steel AISI 304.
Consists of 2 Pistons easily separable for cleaning.
The electronically adjustable dosage.
Log dose of 20 to 60 grams.
Hopper CAPACITY of not less than 30 kg.
Shutter peaks.
The cutting device for fibrous fillers or slightly creamy type.

Device for folding.
Game 2 double anodized aluminum and stainless steel fully adjustable.

Flow-Pack packaging machine.
Brand Name: Tecnomecal.
Model: ALFA-300.
Capacity: 150/160 packages per minute.
JAWS: 200 mm.
1/2 Electric Motor: hp at 1500 rpm.
Electronic temperature control with speed to seal longitudinal and transversal jaws.
Porte 2 power meters.
For use in heat shrinkable Packaging materials.
Chassis built entirely in Stainless Steel.
Including three transformers.

Simple mordent.
Jaw width: 200 mm.
height: 30 mm.
mat: 1.70 m.

Mixer spiral mixer (pig tail)
: Mark Haas.
Models: Ares 65.
Capacity: 65 L
and mechanical and electrical complete.

Stationary Rotary oven trays.
Brand Name: Brasforno.
Oven door:
width: 0.80 mm.
height: 1.98 mm.
depth: 2.03 mm.

stand structure Dimensions:
support height: 1.90 mm.
width of structure: 0.82 mm.
external:
Width 1.55.
Motor height 2.60 m.
2.29 Length with every structure and engines.

Technical specifications of the oven:
FVR-01 Model GL
Power: 3.0 kw.
280° c maximum temperature.
Voltage-220 v-60 hz power.

Valve information:
model: 76510
single-stage.
Low pressure.
PE: 5 kgf/cm ².
PS: 2.8 kPa.
Flow: kg/h LPG.
Burning and system accessories and electric power, brands:
-Hofomat.
-Siemens.
-Dungs.
-Danfoss.
-Brahma.

-Icaterm Burner.
Model: ICA-G 70.
At least Kcal/h: 34,000.
Maximum Kcal/h-50/60 Hz 60,200.
voltage: 220 Volts.

Industrial mixer in stainless steel.
Brand Name: Klainox.
Capacity: 300 l.
Uses paddles to mix.
Has Dumper.
Dimensions:
inner width 64.5 mm.
88, 5 mm Length
Depth (height of the tub): 53 mm.

frigorific Camera.
3.90 x 3.00, dimensions 80 x 3.0.
For cooling, with 1 a condensing unit and evaporator.
Ultra modular Freezer with polyurethane insulation 100/150 mm.
With 1 evaporator, condensing unit 1 and 9 fan motors.
Copeland Compressor.
Model S 6 F 30.2 Y

Two big pots stainless.
Brand Name: Cozil.
Capacity: 500 litres.
Forming of empanada.
Brand: O.N. V
model: 300.
Imported machine.
