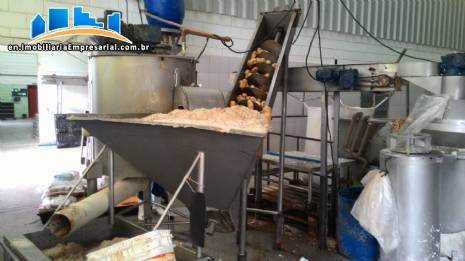

Line continues to produce chips Incalfer |
Line continues to produce chips Incalfer. Capacity: 300 Kg/h (finished product). Composed by:
-primary screw-Feeder Used reviewed. Receiving silo potatoes totally built in stainless steel 304. Screw conveyor (helical) built in stainless steel material. Gearmotor driven with power of 1/2 HP. support Structure totally built in stainless steel 304 square pipes.
-Pelador (peeler) centrpifugo potatoes-Used revised. Access and support structure with gutter potato power totally built in stainless steel square pipes. Drum coated in abrasive material, with central axle fixed speed gearmotor driven, power 1/2 HP. spout with hatch to the potato release, built in stainless material.
-continuous slices Washer-Used revised. Washer tank totally built in stainless material, complete with drains and discharge valves and cleaning. Drip mat washed potatoes balanced type, complete with brackets, gears and shafts made entirely in stainless material. Drive: bike fixed speed reducer with .5 power HP.
-deep Fryer for sliced potatoes-Used revised. Frying pan totally built in stainless steel plates supported by square tubing structure. Containment system of the slices of potatoes formed by: single and double reverse blades, mat, totally built in stainless steel. Drive: inverter variable speed reducer, electronic power 3/4 HP. Hood for vapour withdrawal of frying, totally built in stainless material, with manual override for withdrawal, engaged the fireplace also in stainless steel. Mat for continuous withdrawal of French fries, balanced type with traction chains coupled to the side, driven by mechanical back geared motor with variable speed by frequency, power electronic inverter .75 HP. Disperser for flow Equalization of fat built in plates of stainless material. Manual regulator valve grease flow coupled directly to the entrance of the deep Fryer pot.
-fat Recirculation pump-Used revised. Recirculating pump centrifugal type high flow fat, fully built in cast iron, shaft seal by using graphited gasket, engine driven power 30 HP.
-continuous gas heat exchanger, 1.000.000 KCAL-near Mint. Combustion chamber structure, fully built in square tubes and SAE 1020 carbon steel plates and 1045, isolated and externally coated in aluminum. Internal recirculation and heating pipes, totally built in stainless steel special heat resistant according to DIN 2448. Monoblock type burners, with total power of 1.000.000 kcal/h, adjusted and calibrated to work with LPG gas. Combustion system with diameter 1/2 01:02 class 2 solenoid valves, solenoid valve and pilot 01 01 air filter drive system with pilot and automatic ignition transformer, pressure switch to minimum pressure of air and gas.
-fat-Storage Tank again. Built in stainless material, complete with electrical resistance for heating the stored fat. Interconnection between pipe and tank deep Fryer in stainless material.
-drying Mat-New. Support structure built in folded stainless steel plates. Hinged treadmill built in stainless material, powered by synchronized gear built in stainless material, and fixed speed gearmotor with .5 power HP. 2 centrifugal fans with powers of 3 and 5 HP coupled to distributors built in stainless material. Lower suction mat system composed of nylon and collector Cyclone separator in stainless material.
-Aromatizer/feeder-New. Collector funnel, support structure and transmission box made of stainless material, with electromechanical vibrator with power 1/12 HP. slotted Cylinder feeder and feeder built in stainless material. .5 HP power speed reducer with speed variation by electronic frequency inverter.
-vibratory Gutter for separation of fat-Used revised. Splitter trough built in stainless material, complete with removable strainer for separation of excess fat. Drive set formed by engine power 01 cv and eccentric double transmitter. Vibratory system composed of springs of rubber and steel structure, Swiss technology. Support structure built in square tubes of stainless material.
-cylinder aromatizer-Used revised. Cylinder Diameter 750 mm x 1,600 aromatizer mm in length built in stainless material, complete with fins and helicoids for homogenization of the product. Support structure built in square tubes of stainless material, complete with casters for moving the equipment. Drive: speed power Gearmotor .5 HP.
|
Brand:
Incalfer
|
|
Main applications:
Food industry
|
|
